Sectional Doors

An attractive style of door with a wide choice of designs and with one of the highest insulation values of all types of Industrial Door.

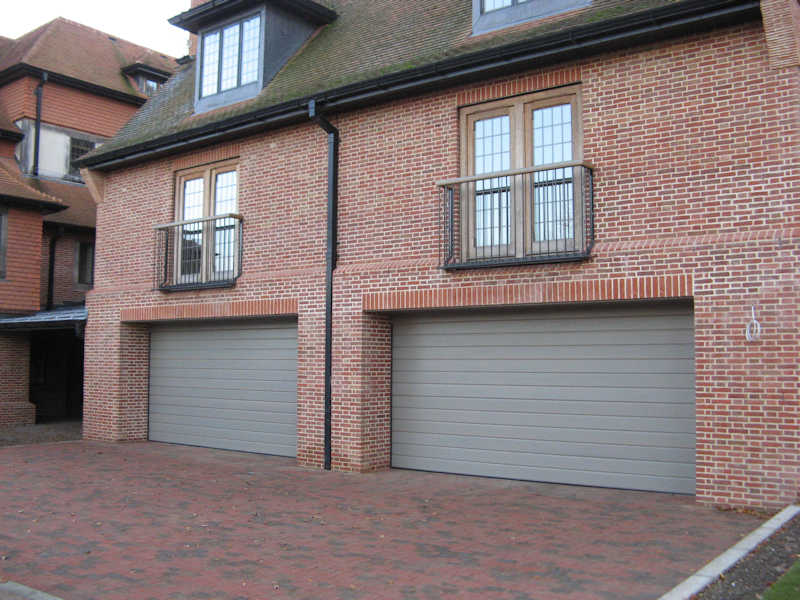

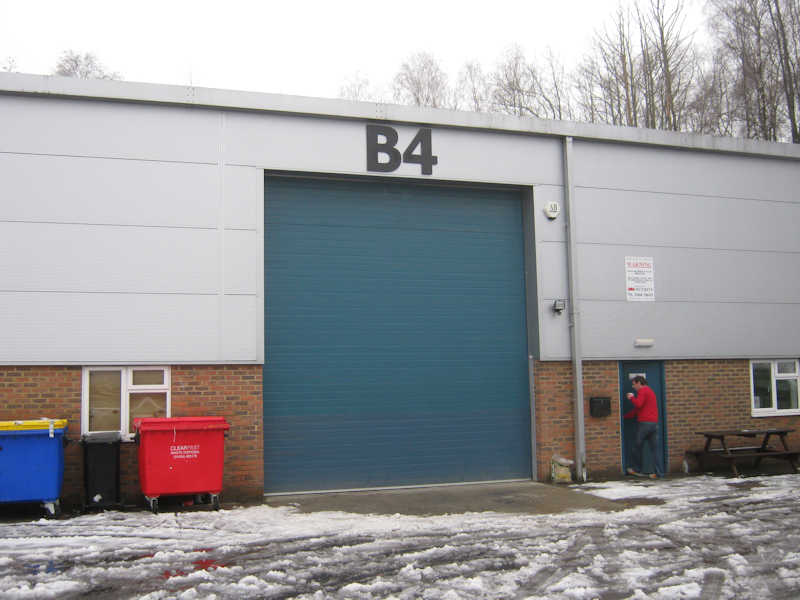

Sectional doors are suitable for domestic garages, small industrial units to much larger openings.

Doors with standard track systems can be up to 8m wide by 6m high are possible and depending on the track systems and opening heights 10m widths can be accommodated.

Panels can be supplied in 12 Plastisol colours 24 standard Polyester colours to suit most specifications but the panels can be factory finished in almost any RAL or BS 4800 colour.

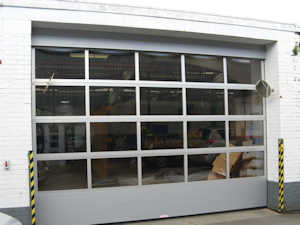

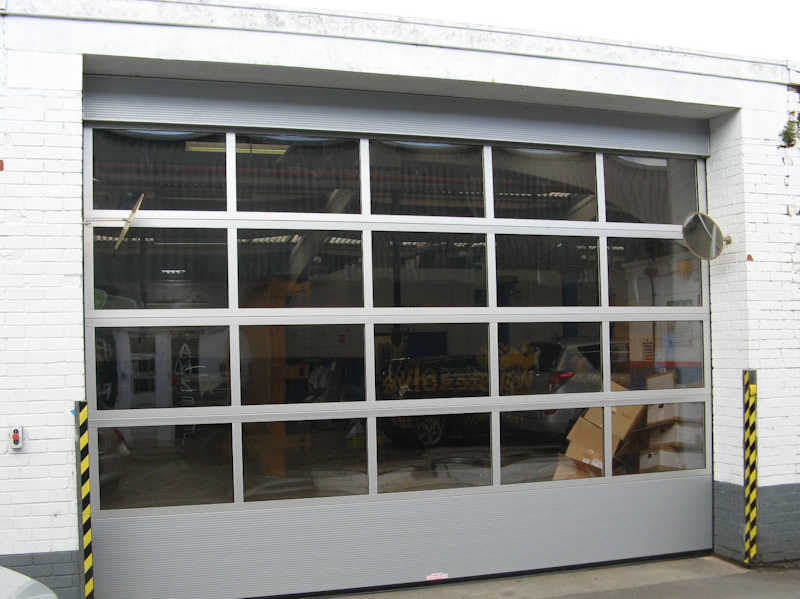

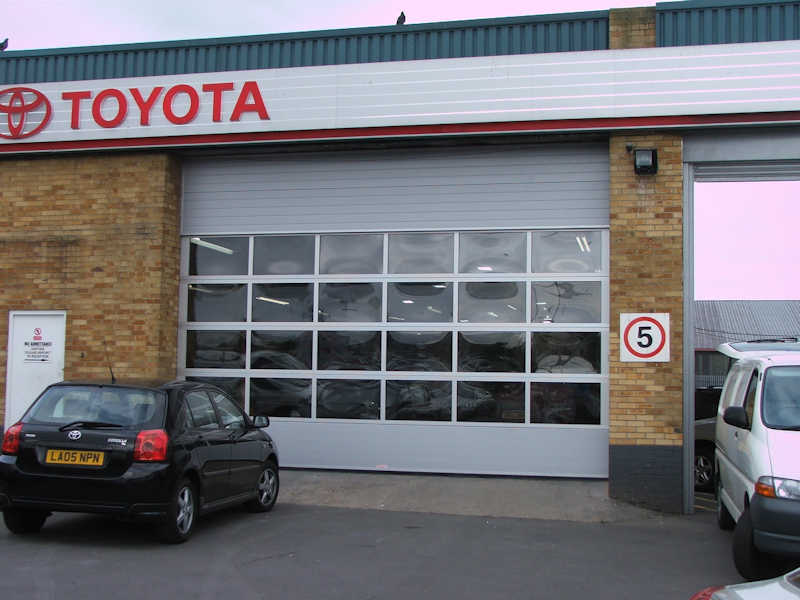

Panels can be supplied as either solid panels with stucco or micro ribbed profiles or as panoramic aluminium panels with single or double glazed units or in filled with louvers, mesh or bars for car parks etc.

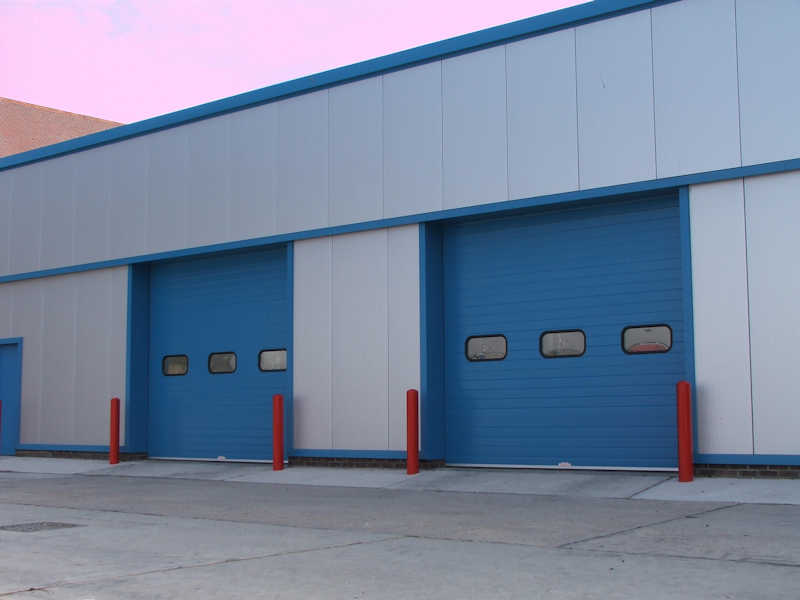

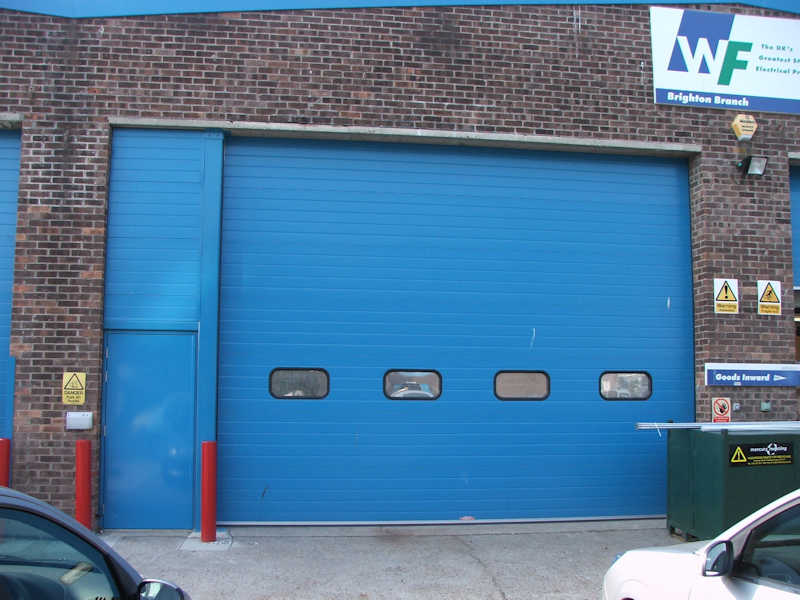

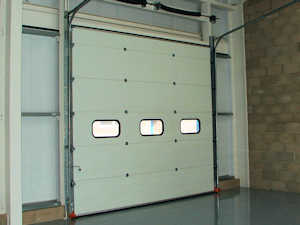

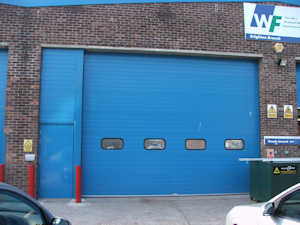

Windows, in various sizes and shapes, provide light and vision.

Sectional doors, depending on size can be push up/pull down, chain hoist operated or motorised.

Technical Information

• Panels constructed from steel insulated 40mm thick steel sandwich panels with an inner and outer substrate of 0.45mm to 0.5mm continuously hot dip, zinc coated structural steel.
• The closed cell, Polyurethane insulation core is HFC, CFC & HCFC free foam.
• Insulation 40mm panels have a thermal bridge and a U value of 0.51 W/M2K and a weighted sound reduction of (RW) of 25db.
  Where insulation is of primary importance we can offer enhanced insulation properties by using 60mm or 80mm thick panels (limited colour range and minimum quantities may apply).

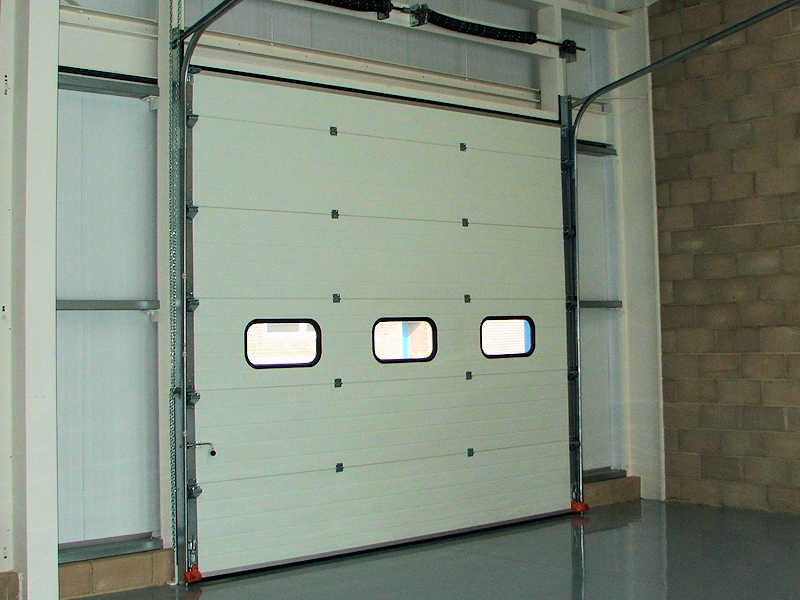

• Glazing where natural light is the primary consideration a variety of vision/glazing options are available, from port holes to full width aluminium sections.
• Panel Finishes the standard finish of the inner face of our panels is white architectural polyester. The external panel face is available in a comprehensive range of polyester and plastisol colours in ribbed and micro-profile designs.
• Sealing System a foam seal is provided to the bottom of each panel providing air and water tightness. Flexible rubber seals are fitted to all four sides of the door. The top seal compresses against the lintel; the bottom seal compresses against the threshold/floor.

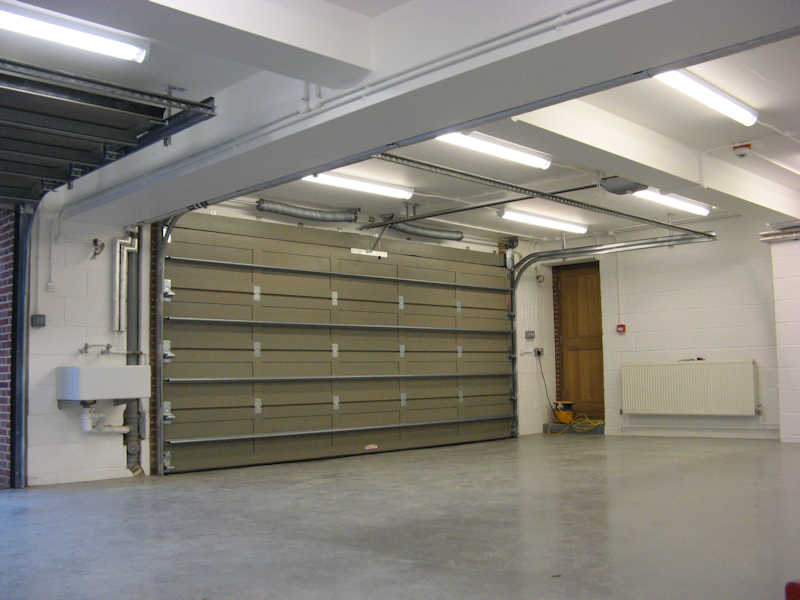

• Track System the track system is manufactured from cold rolled sections in a variety of options, standard lift, high lift, full vertical lift and low headroom configurations.

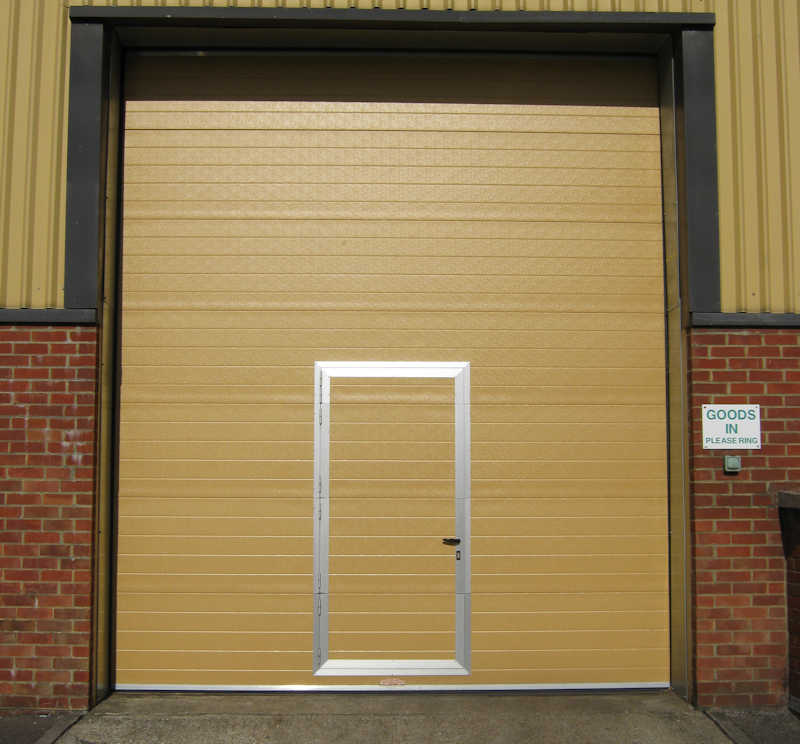

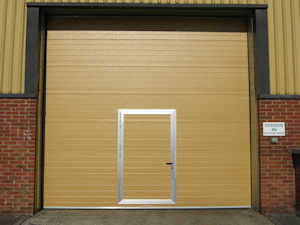

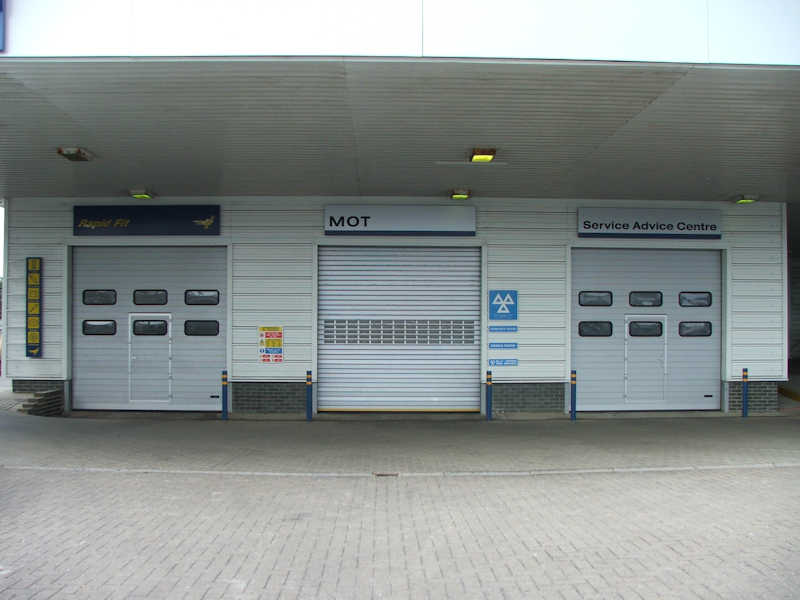

• Pass Doors also known as wicket doors avoid unnecessary operation of the main door therefore making immediate energy savings. A low threshold option is available which can accommodate wheeled equipment.
• Hardware each panel is connected to its adjoining panel with high quality galvanised hinges and adjustable roller carriers. The rollers have a steel shaft and nylon running surface and a ball race bearing.
• Anti-Fall/Safety in compliance with EN1324-1 our doors are fitted with a variety of safety features i.e. spring break and cable break anti fall devices which prevent the uncontrolled movement on the door leaf.
• Torsion Spring the door leaf is balanced by Torsion Springs. Springs can be upgraded for high usage doors. All springs are individually calculated to suit the total weight of the panel and track configuration. Springs are supported on a 25.4mm shaft with spring mounting castings.
• Operating options doors fitted with 4:1 reduction chain hoist mechanisms or Electric motors, either single or three phase.

Depending on customer choice, application and function a variety of door activation systems are available.

Option 1

Dead-man open
Dead-man close

Option 2

Press-to-run open
Dead-man close

Option 3

Press-to-run open
Automatic Timed closure

Accessories

• Radio control
• Induction loops
• Radar activation
• Traffic lights
• Shoot bolt safety interlocks

Leaf Construction/Panels constructed from steel insulated 40mm thick steel sandwich panels with an inner and outer substrate of 0.45mm to 0.5mm continuously hot dip, zinc coated structural steel (foam density from 38kg to 45kg/m3).

The closed cell, Polyurethane insulation core is HFC, CFC & HCFC free foam.

Insulation the individual 40mm panels have a thermal bridge and a U value of 0.51 W/M2K and a weighted sound reduction of (RW) of 25db.
Where insulation is of primary importance we can offer enhanced insulation properties by using 60mm or 80mm thick panels *

Glazing where natural light is the primary consideration a variety of vision/glazing options are available, from port holes to full width aluminium sections.

Panel Finishes the standard finish of the inner face of our panels is white architectural polyester. The external panel face is available in a comprehensive range of polyester and plastisol colours in ribbed and micro-profile designs.

Sealing System a foam seal is provided to the bottom of each panel providing air and water tightness. Flexible rubber seals are fitted to all four sides of the door. The top seal compresses against the lintel; the bottom seal compresses against the threshold/floor.

Track System the track system is manufactured from cold rolled sections in a variety of options, standard lift, high lift, full vertical lift and low headroom configurations.

Locking galvanised shoot bolt, padlockable version available, inter-lock available for electric doors to disconnect the power when in the locked position.

Pass Doors also know as wicket doors avoids unnecessary operation of the main door, the frequency of use of the main door is reduced which yields immediate energy savings. A low threshold option is available which can accommodate wheeled equipment.

Hardware each panel is connected to its adjoining panel with high quality galvanised hinges and adjustable roller carriers. The rollers have a steel shaft and nylon running surface and a ball race bearing.

Anti Fall/Safety in compliance with EN1324-1 our doors are fitted with a variety of safety feature spring break and cable break anti fall devices which prevent the uncontrolled movement on the door leaf.

Torsion Spring the door leaf is perfectly balanced by coated Torsion Springs, shot blasted for longer life. Spring usage designed for approx 15,000 cycles. All springs are individually calculated to suit the total weight of the panel and track configuration. Springs are supported on a 25.4mm shaft with spring mounting castings.

Drive Unit

The drive unit is connected to the control panel using a flexible power cable with plug connectors each end for ease of installation.

Depending on customer choice, application and function a variety of door activation systems are available.

Option 1

Dead-man open
Dead-man close

Option 2

Press-to-run open
Dead-man close

Option 3

Press-to-run open
Automatic Timed closure

Electric options

Upgrade the control panel for automatic timed closure.

Optical Safety bottom edge.

Photocells – reflective and send and receive types available.

Full range of safety and activation equipment including radio control, Induction loops, radar activation, traffic lights.

Optional panel finishes

External face is available in polyester colours in Micro-Profile and or Stucco finishes:

• Bright White RAL9010 Green RAL6005 Fir Green RAL6009
• Yellow RAL1021 Green RAL 6009 Silver RAL9006
• Grey Aluminium RAL9007 Sunset Red RAL3000 Traffic Grey RAL7042
• Sepia Brown RAL8014 Gentian Blue RAL5010 Anthracite RAL7016
• Brown RAL8019 Bone White RAL9002 Traffic White RAL9016
• Ivory RAL1015 Ultramarine Blue RAL5002 Mouse Grey RAL 7005
• Light Grey RAL 7044 Black RAL9005 Orange RAL 2001
• RAL 1013 Leaf Green RAL6002 Sapphire Blue RAL5003

External panel face is available in Plastisol colours:

• Gull Grey BS 18B17 Azure Blue BS 18C39 Flame Red BS 04E53
• Olive Green BS 12B27 Goosewing Grey BS10A05 Sunflower Yellow BS 10E55
• Merlin Grey BS 18B25 Cornflower Blue BS18E53 Khaki Green BS 12B21
• Leaf Green RAL6002 Van Dyke Brown BS 08B29 Sapphire Blue RAL5003

* limited colour range and minimum quantities may apply.
